5500 Arrowlock Manual Chute - Standard

5500 Series Standard
USER-FRIENDLY CHUTE WITH AN EXCEPTIONAL HOLD?
NO PROBLEM.

STANDARD[5500LMR]
WEIGHT: 1692 LBS.
DIMENSIONS: 92" W X 97" H X 133" L

In an industry that often neglects the needs of small-scale cattle handling operations, the Arrowlock 55 Series is your solution. Built by industry experts, this squeeze chute is designed to offer safe and secure livestock management specifically for small ranching operations.

Featuring an all-new ratchet locking system head gate, you’re guaranteed a strong hold that reduces the chance of cattle backing out. With a 5-year warranty and a lifetime guarantee on locking mechanisms, the Arrowlock 55 Series Chute is the ultimate choice in cattle handling.

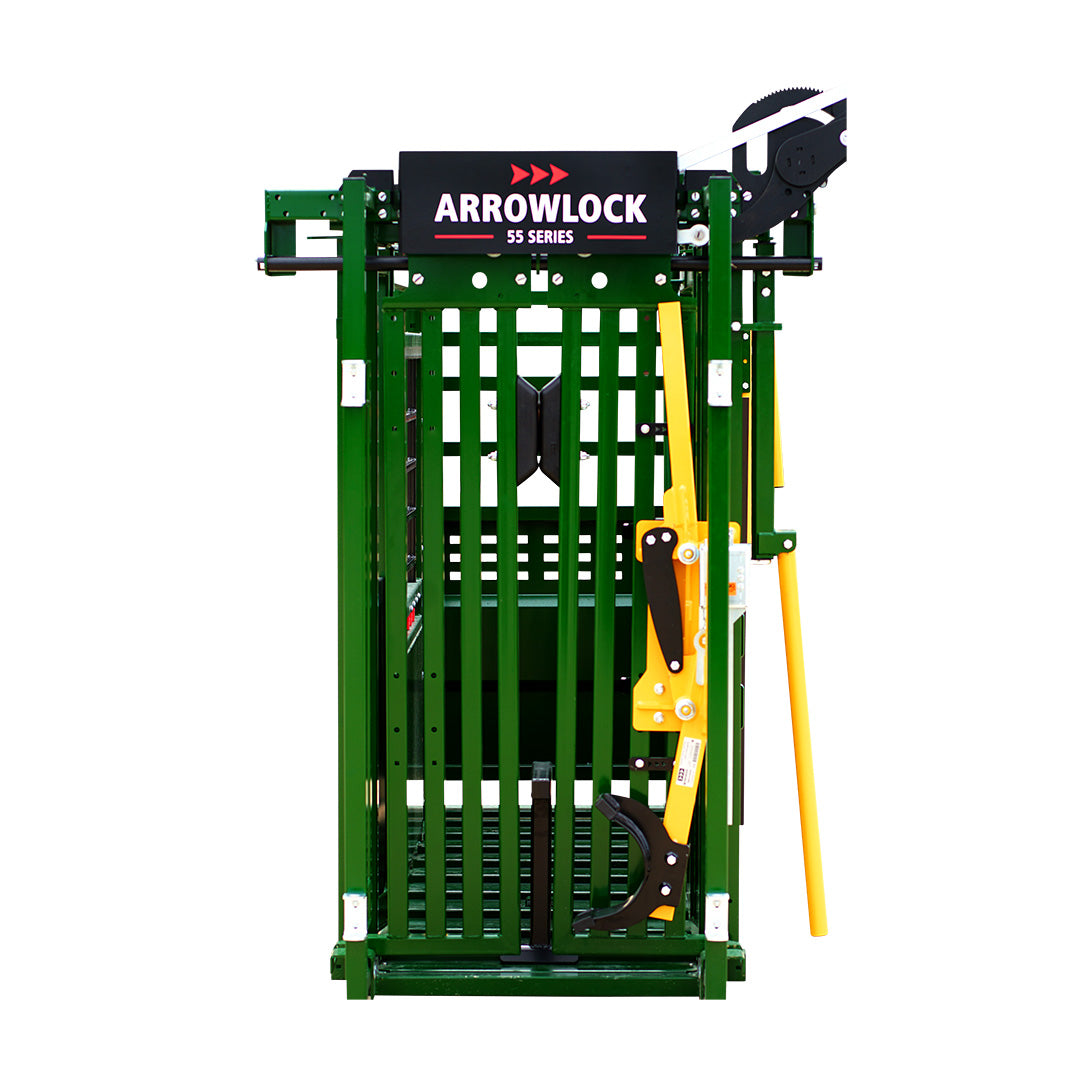

THIS UNIT IS EQUIPPED WITH HEAD HOLDER & STERNUM BAR

ARROWLOCK HEAD GATE
• Ratchet lock secures the Head Gate in any position
• Single handle push-pull operation never requires adjustments
• Curtain-style Head Gate opens parallel to eliminate the risk of choking
• 3E Barred Head Gate design uses light to draw cattle in
• Ratchet locking mechanisms for a stronger, more secure hold

ACCESS
• Removable side access panels
• Removable needle door access for quick injections to the cattle’s neck
• Side access doors that can be used independently or together as a full side exit (working side only)

SQUEEZE
• Single lever push-pull operation
• Ranges from 31.5” fully open to 7.75” fully closed
• Parallel squeeze
• Patented lockbox on the squeeze offers infinite locking positions – LIFETIME WARRANTY

HEAD GATE OPERATION HANDLE
• User-friendly design reduces operator fatigue
• Handle can be situated anywhere along the side of the chute

REAR ROLLING DOOR
• Rear door is easily operated
• Top-mounted tracks and nylon rollers provide smooth operation and eliminate build-up

RUMP FINGERS
• Nylon Rump Fingers (LIFETIME WARRANTY) designed to endure high pressure
• Rubber-coated fiberglass Rump Bar

Product Specifications

• 5-Year Warranty
• Ratchet locking mechanism for a stronger head gate hold
• Barred head gate design uses light to draw cattle in
• Head Gate handle can be operated from anywhere alongside the chute
• Curtain style head gate opens parallel to a full 29.5”
• Cattle chute ranges from 31.5” fully open to 7.75” fully closed
• One-side swing-out emergency exit
• Poly-composite rump fingers and rump bar on top access door to prevent cattle from backing up
• 3E Rolling Door with a top mounted track so you can control the flow of cattle
• Top mounting track on the Rolling Door eliminates build-up for seamless use

• 12.75” top to bottom needle door access
• Rectangular tubing to limit cattle bruising
• Ribbed steel floor to provide excellent traction for your cattle
