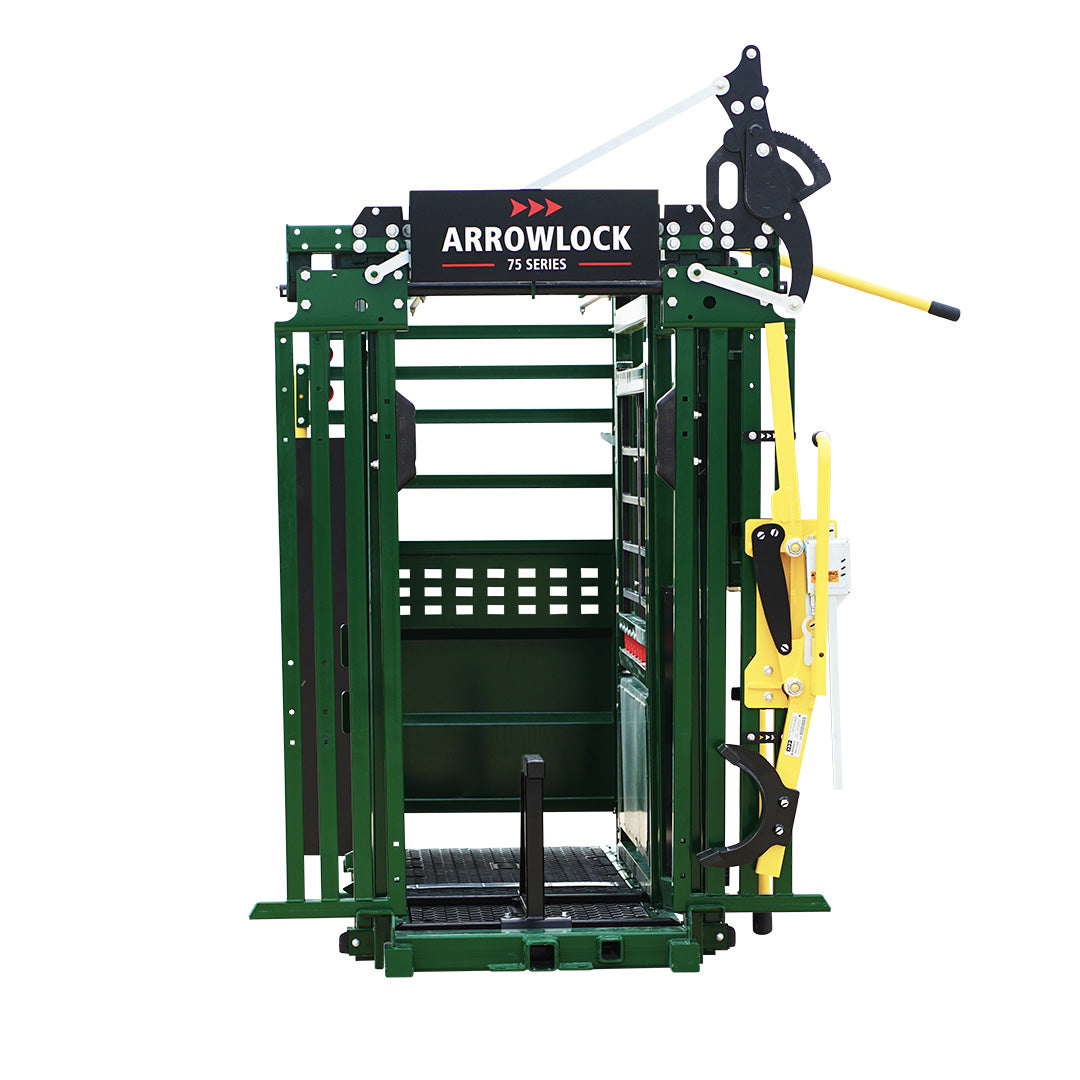

7500 Arrowlock Series manual chute with vet cage, sternum bar and head holder

75 SERIES CHUTE
SAFE AND SECURE CATTLE HANDLING?
NO PROBLEM.

MODEL: DELUXE VET [7500LV]
WEIGHT: 2055 LBS.
DIMENSIONS: 92” W X 99” H X 133” L

The Arrowlock 75 Series Chute is your ultimate time-saving solution for efficient and safe cattle handling. With many user friendly features like multiple access points, easy-to-use operating handles and an all-new ratchet style locking head gate, this chute is a true one-person operation.

With every detail reflecting Arrowquip’s unwavering dedication to safe cattle handling, and backed by 10-year warranty, you can be confident you’re making the right decision. It’s not just a tool, it’s an investment that will elevate the efficiency on your operation for years to come.

HEAD GATE OPERATION HANDLE
• User-friendly design reduces operator fatigue
• Handle can be situated anywhere along the side of the chute

RUMP FINGERS
• Nylon Rump Fingers (LIFETIME WARRANTY) designed to endure high pressure
• Rubber-coated fiberglass Rump Bar

REAR ROLLING DOOR
• Rear door is easily operated from either side of the chute
• Top-mounted tracks and nylon rollers provide smooth operation and eliminate build-up
• Can be reversed if necessary

ACCESS
• Removable side access panels can be situated in multiple positions
• Drop-down needle access for quick injections to the cattle’s neck
• Side access doors that can be used independently or together as a full side exit

SQUEEZE
• Single lever push-pull operation
• Ranges from 31.5” fully open to 7.75” fully closed
• Full length, parallel squeeze
• Patented lockbox on the squeeze offers infinite locking positions – LIFETIME WARRANTY

FLOORING
• Maintenance-free, molded rubber flooring for excellent traction
• Quietest flooring system on the market

Product Specifications

• 10-year warranty
• Arrowlock head gate for a secure hold
• Unique barred head gate design uses light to draw cattle in
• Curtain-style head gate opens to a full 31.5” top to bottom
• Easy to use push-pull squeeze lever
• Squeeze on the cattle chute ranges from 31.5” fully open to 7.75” fully closed
• Rump fingers ensure additional safety no matter the size of the animal
• Ambidextrous rolling door so you can control the flow of cattle
• Vet door opens in both directions for a full 180° of maneuverability (Deluxe Vet only)
• Swing-out top and bottom squeeze chute access doors can be used individually or together as an emergency exit
• Removable side access doors that can be configured in a variety of positions
• 12.75" top to bottom needle access for quick injections
• Pivot and latch points feature poly bushings for a silent operation
• True rubber floor for added traction and a quieter operation
• Mount brackets included so you can add load bars or secure the chute to concrete
• Rectangular tubing to limit cattle bruising
