EASY FLOW CATTLE ALLEYS
BECAUSE KEEPING CATTLE FLOW SHOULDN’T BE A PROBLEM.

8’ ALLEY [EF-8]
DIMENSIONS: 35” W X 80” H X 96” L
WEIGHT: 621 LBS.
10’ ALLEY [EF-10]
DIMENSIONS: 35” W X 80” H X 120” L
WEIGHT: 764 LBS.

Arrowquip's improved Easy Flow® Adjustable Cattle Alleys are designed to be safer, quieter, and more efficient. Cradle-shaped and fully adjustable, this cattle alley can accommodate cattle of any size with easy adjustments. Featuring spring-loaded locking systems and safety latches, you can quickly modify the width of the alley from one side by simply pulling on the adjustment cables. Adhering to low-stress cattle handling principles, the Easy Flow Alleys have caulked flat sheeting and nylon bushings over the slam-latch pins to reduce noise. Additionally, the alley sections bolt tightly together to eliminate the need for pins.

The Easy Flow Cattle Alleys now come with the 3E: Easy Entry and Exit System with the NEW removable panels. Cattle only see what you want them to see in the Easy Flow Alleys. By modifying the panel sides to your preference, pressure zone handling techniques can be applied to regulate flow with ease. For further customization and control, rolling alley gates and kicker panels can also be added to create the alley system of your dreams. There are infinite configurations possible to suit your needs.

With easy adjustments, excellent animal control, and the utmost in animal safety, the Adjustable Easy Flow Cattle Alley is designed to provide increased efficiency in your complete cattle handling system.

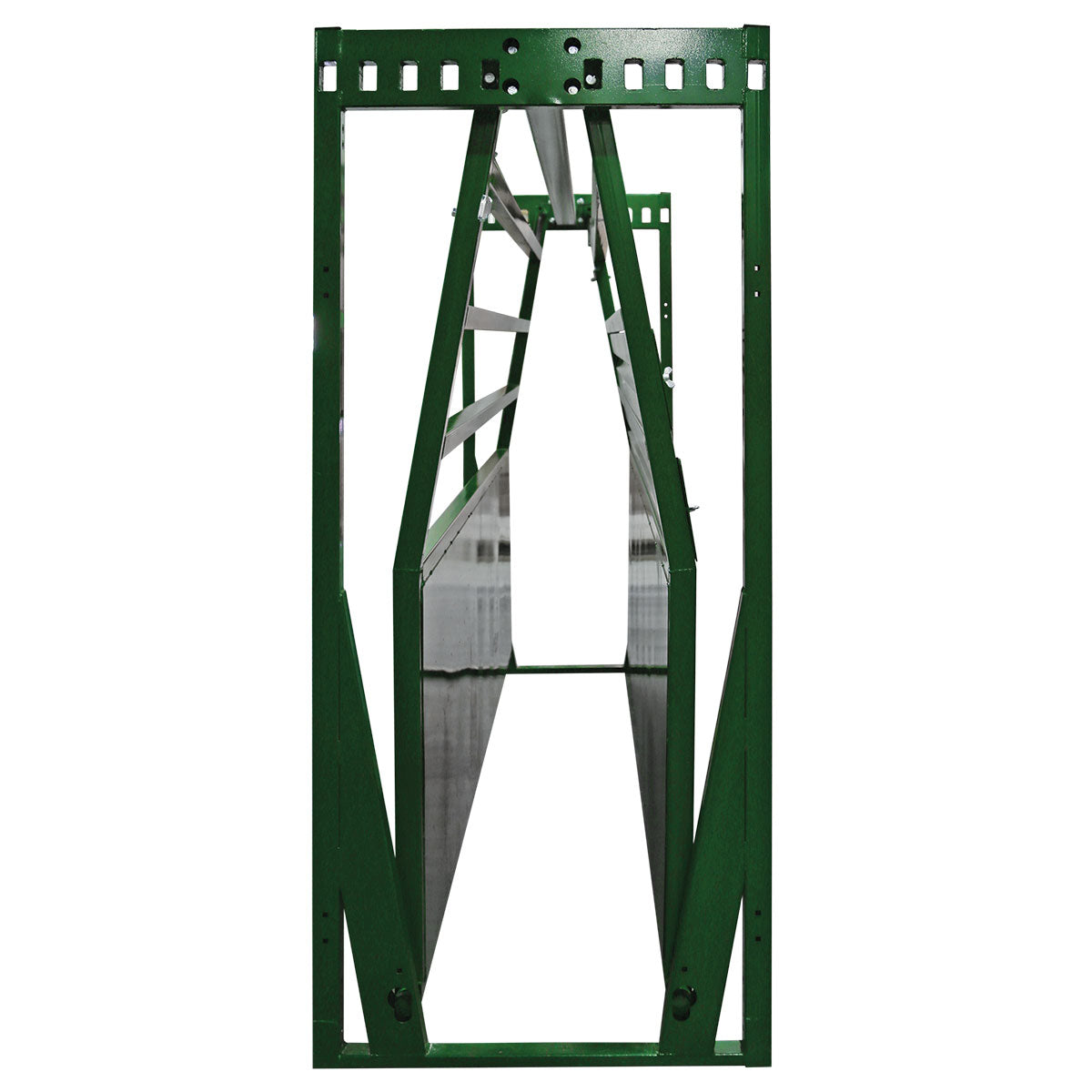

Cradle-Style Alley

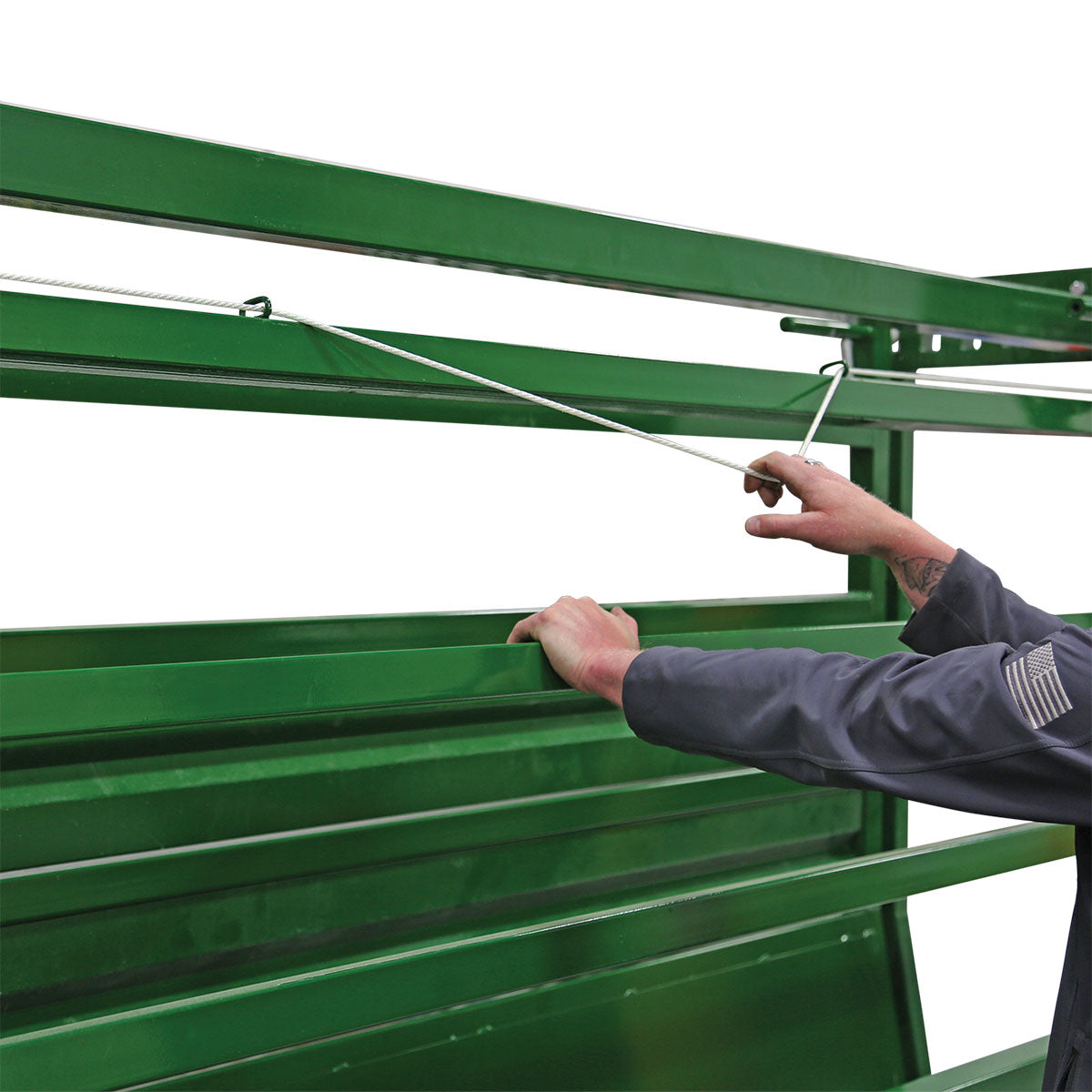

The cradle on the Easy Flow Cattle Alley is fully adjustable from 29.8" to 18.3", giving you the ability to accommodate animals of any size and keep them from turning back. You can easily change the settings of both sides of the cattle alley from one side by pulling on the adjustment cables connected to the spring-loaded cam-slam latches. For added security, the adjustable sides include safety latches to ensure they do not drop down unintentionally.

Removable Panels

You can now customize what cattle see in the Easy Flow Alley with the removable panels. Adjusting the sheeting height to your preference allows you to apply point of balance handling techniques effectively to regulate the flow of cattle. The standard Easy Flow Cattle Alley comes with two removable panels and extra panels are available, if needed. For easy storage, the removable panels bolt onto the sides of the alley when not in use.

Quiet Construction

The Easy Flow Cattle Alleys are designed with quiet features all around to improve cattle movement, such as caulking on sheet metal and nylon bushings over the slam-latch pins. By bolting the Easy Flow Alleys together, pin rattling is eliminated to keep stress levels at a minimum, and allow cattle to flow calmly through the alley system.

Product Specifications

• Comes in 8' and 10' sections
• Removable panels allow the operator to control what cattle see in the cattle alley
• For easy storage, removable panels are bolted onto the alley sides when not in use
• Cradle-shaped and fully adjustable to accommodate animals of any size
• Sides are sheeted to the ground, eliminating foot traps
• Durable clips allow the alley to connect with other Arrowquip products seamlessly
• Spring-load locking system on cam-slam latches for easy adjustment
• Top adjustment can be used to stop animals from rearing up
• Caulked flat sheeting on both sides to eliminate sheet metal rattling
• Nylon bushings over slam latch pins to reduce noise
• Panels bolt tightly together to eliminate pin rattling
• Lower bottom bar allows for safe entry and exit

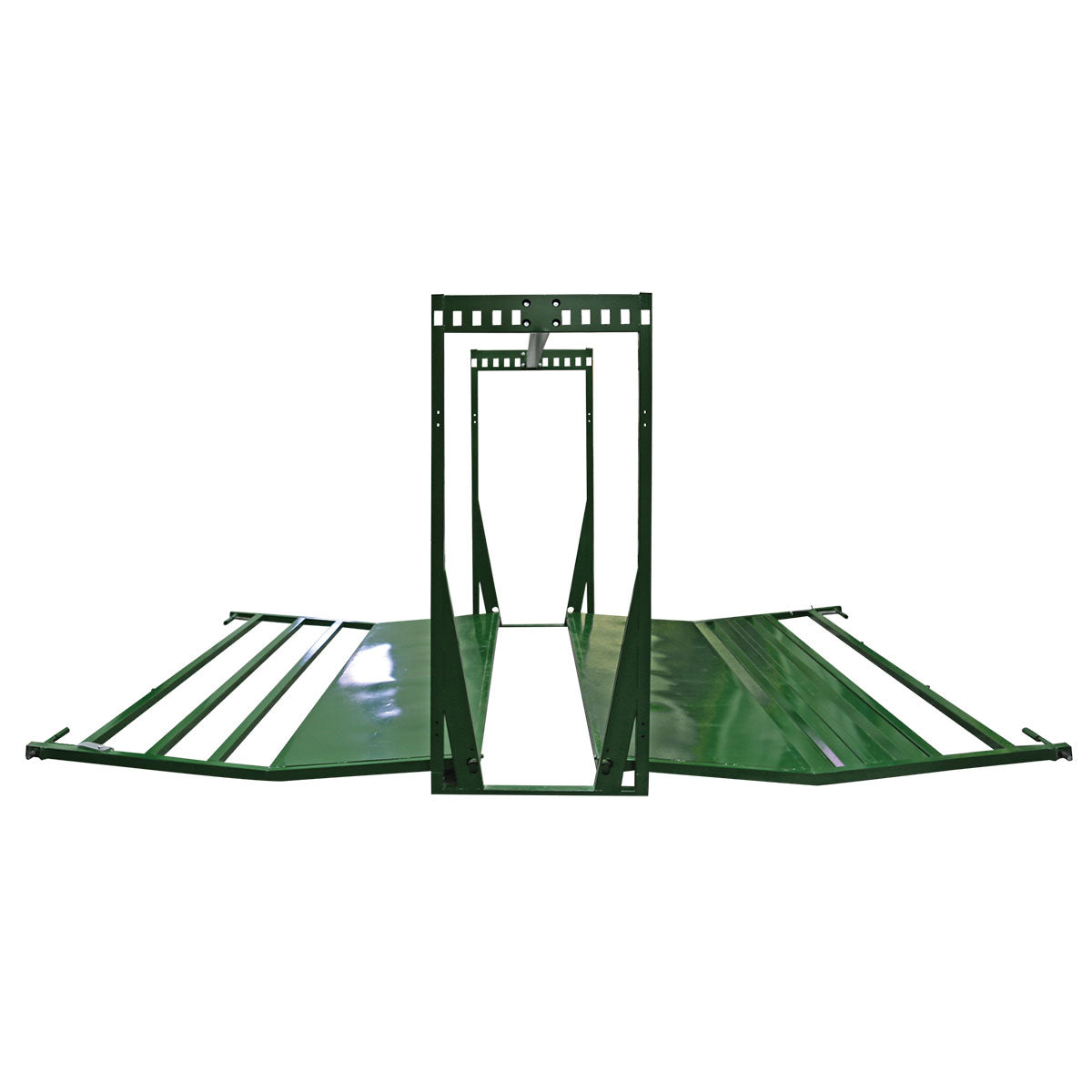

• Both side panels drop down fully, allowing the handler to access the animal in case of emergency
• Safety latches on the side panels add security and control when adjusting, and ensure the sides will not drop down accidentally
