AN EFFICIENT COMPLETE HYDRAULIC CATTLE HANDLING SYSTEM? NO PROBLEM
Model: 10818-CROWDING Weight: 6037 LBS. Working Dimensions: 103” W X 101” H X 577” L (When set up. With range dependent of swing arm position) Towing Dimensions: 81” W X 116” H X 483” L (With wheels and hitch)
Meet your all-in-one cattle handling system: The Powerlock 108 Series Portable Hydraulic Chute, Alley, and Tub, ready to take on any task no matter where you are. With fast-acting hydraulics on a pivoting swing arm, you have ultimate control at every point along your chute.

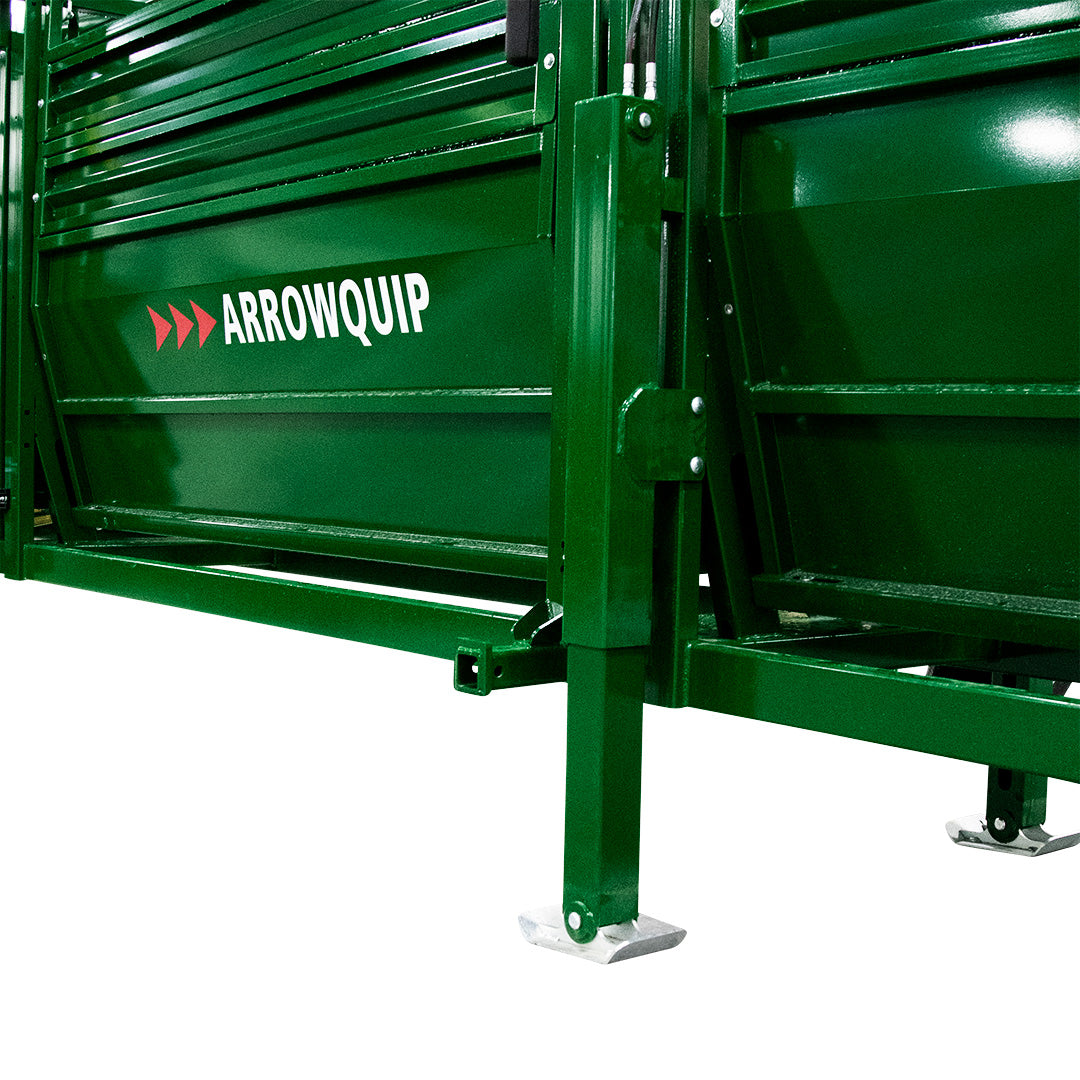

With a redesigned cattle tub that features welded-on joiner bars, and standard hydraulic jacks, you can set up and take down your unit in no time, saving you energy to complete the tasks at hand.
From the barred head gate to the removable alley panels, this unit works with cattle’s behavior so you can work efficiently. Achieve success effortlessly with the Powerlock 108 Series Portable Hydraulic Cattle Chute, Alley, and Tub.
Product Specifications
Hydraulic squeeze ranges from 31.5” fully open to 7.75” fully closed
Hydraulics are controlled from a pivoting swing arm for full control
Barred head gate design uses light to draw cattle into the chute
Curtain-style head gate opens parallel to a full 31.5”
Two rows of poly-composite rump fingers ensure safety no matter the animal size
Vet doors open a full 180° for complete maneuverability
Full side emergency exit for complete access to your cattle
Swing-out bottom access doors
Six side access panels can be removed and configured in multiple ways
True virgin infinite rubber floor backed by a lifetime guarantee
Cradle-shape in the alley ranges from 31.5” to 21” in width
Safety latches on the cattle alley add security and control when adjusting to ensure the sides won’t drop accidentally
Cattle Tub that folds in on itself for compact towing
Joiner Bars welded onto the cattle tub frame for a simpler set up
