Portable Tub and Alley
Portable Tub and Alley
Product Code: PTA
Weight: 3117 lbs.
Dimensions: 103" Wide x 84" High x 416" Long
Towing Dimensions: 80" Wide x 98" High x 352" Long
Arrowquip’s Portable Cattle Tub and Alley has been upgraded to provide you with more capacity and features to make working cattle simpler, no matter where you are. Featuring an enhanced portable system frame found in all Arrowquip portable models and a NEW collapsible tub that’s easier than ever install. When you’re done using the unit, the cattle tub folds into itself, giving you a safe and easy towing experience. Featuring an adjustable hitch, thick structural beams, and a single point jacking system, setting up and taking down this portable unit can be done in under 5 minutes, saving you time and making your life easier.
The 180° Crowding Tub provides effective cattle movement from the tub into the alley. The sweep gate features a lock out to keep it from moving back towards the handler when crowding cattle into the alley.
Product Specifications
- Two cradle-shaped 8’ Adjustable Cattle Alley sections range from
- Optional Panel Hangers to carry additional panels (2 low-pressure panels per alley side)

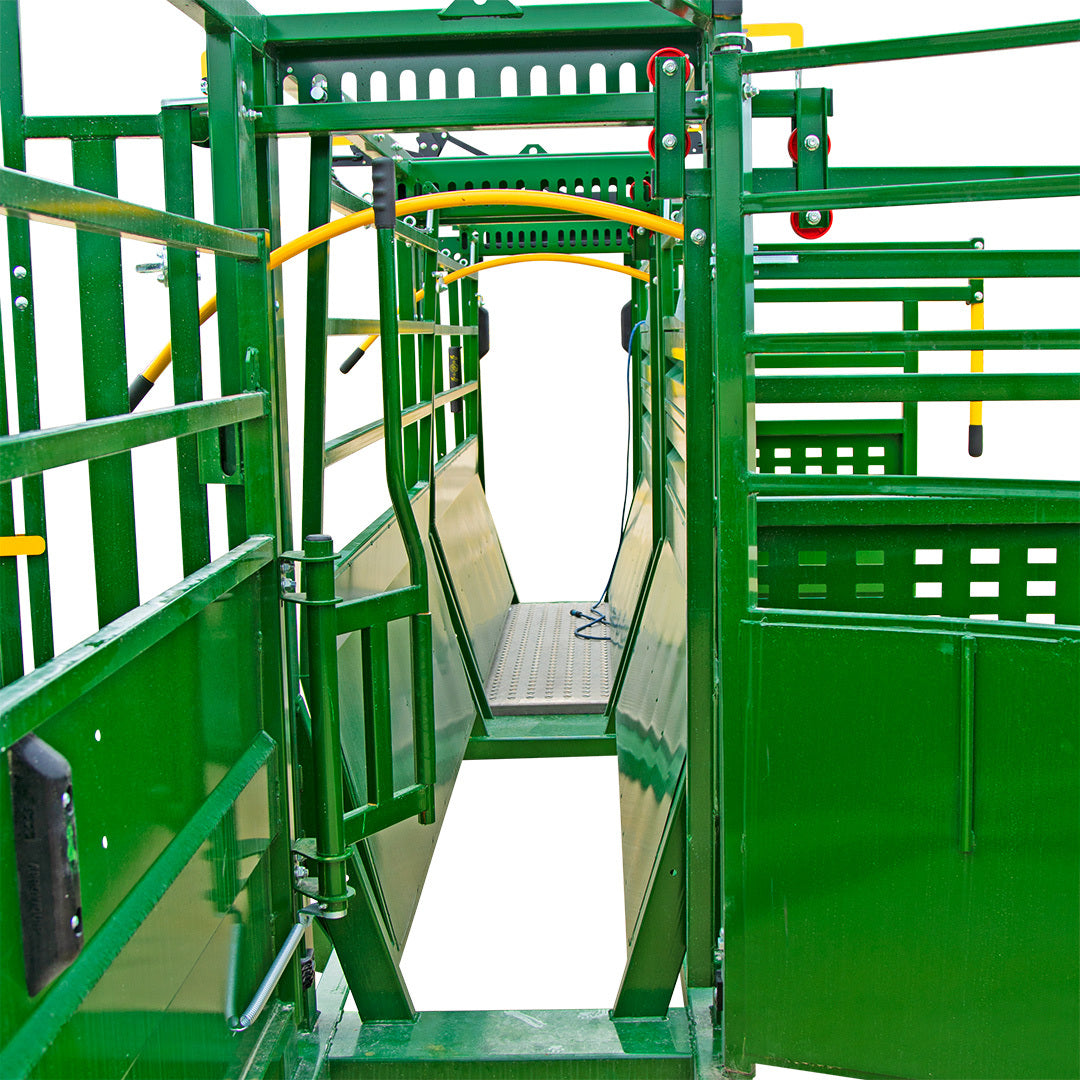

- Both sides of the Easy Flow Alley can be adjusted from one side
- Both side panels drop down fully, allowing the handler to access the animal in case of emergency
- Easy Flow Alleys come with removable panels so you can control what cattle can see
- Safety latches on the Easy Flow Alley side panels ensure the sides will not drop accidentally
- The cattle tub folds in on itself for compact transport
- Solid bow on the tub frame ensures quick setup
- Joiner Bars are welded on the tub for seamless installation
- Tub measures just 44” wide when panels are folded in
- Rolling Door between alleyways to improve flow and allow for weighing
